Complete Ice Plant Solutions from One Pune Manufacturer
Praj Refrigeration Industries has designed and manufactured industrial ice plants in Pune, Maharashtra since 2003. Our range covers every stage of an ice plant: ice production, refrigeration, storage and automated ice handling. Buying from one manufacturer means you get a single point of responsibility for sizing, installation, commissioning and after-sales service.
Most customers start with an ice machine. A flake ice machine (1 to 35 TPD) produces dry, sub-cooled ice for fishery, dairy, bakery, chemical and concrete cooling. A tube ice machine (1 to 80 TPD) produces crystal-clear edible ice for cafés, hotels, beverages and packaged ice. Both are built with SS 304 evaporators and PLC control.
Around the ice machine, Praj supplies the refrigeration components that keep it running efficiently: air-cooled and water-cooled condensing units, shell and tube condensers and IS 2825 pressure-tested liquid receiver tanks. For storage and dispatch we build insulated ice storage rooms, automated rake delivery systems and stainless-steel screw conveyors, all sized to your plant's daily output.
Which Ice Plant Product Do You Need?
A quick guide to what each Praj product does, its range and where it is typically used.
| Product | What it does | Range | Typical use |
|---|---|---|---|
| Flake Ice Machine | Produces dry, sub-cooled flake ice at about -7 °C | 1 to 35 TPD, R404A / NH3 | Fishery, dairy, bakery, chemical, concrete cooling |
| Tube Ice Machine | Produces crystal-clear, slow-melting edible tube ice | 1 to 80 TPD, 22 / 29 / 35 / 41 mm | Cafés, hotels, beverages, packaged ice |
| Ice Storage Room | Insulated PUF storage that keeps ice dry and loose | Sized to 1 to 80 TPD output | Buffer between ice production and dispatch |
| Condensing Unit | Air-cooled or water-cooled refrigeration unit | Kirloskar, Bitzer, Copeland, BOCK compressors | Ice plants, cold rooms, process cooling |
| Shell and Tube Condenser | Water-cooled condenser for high heat rejection | Cupro-nickel or SS 304 tubes | Large ice plants, ammonia systems |
| Liquid Receiver Tank | Stores liquid refrigerant after the condenser | IS 2825 tested, R404A / R22 / NH3 | All industrial refrigeration systems |
| Rake Delivery System | Automated ice discharge from storage | 6 to 24 m travel, 5 to 50 TPD | Truck loading, packing lines |

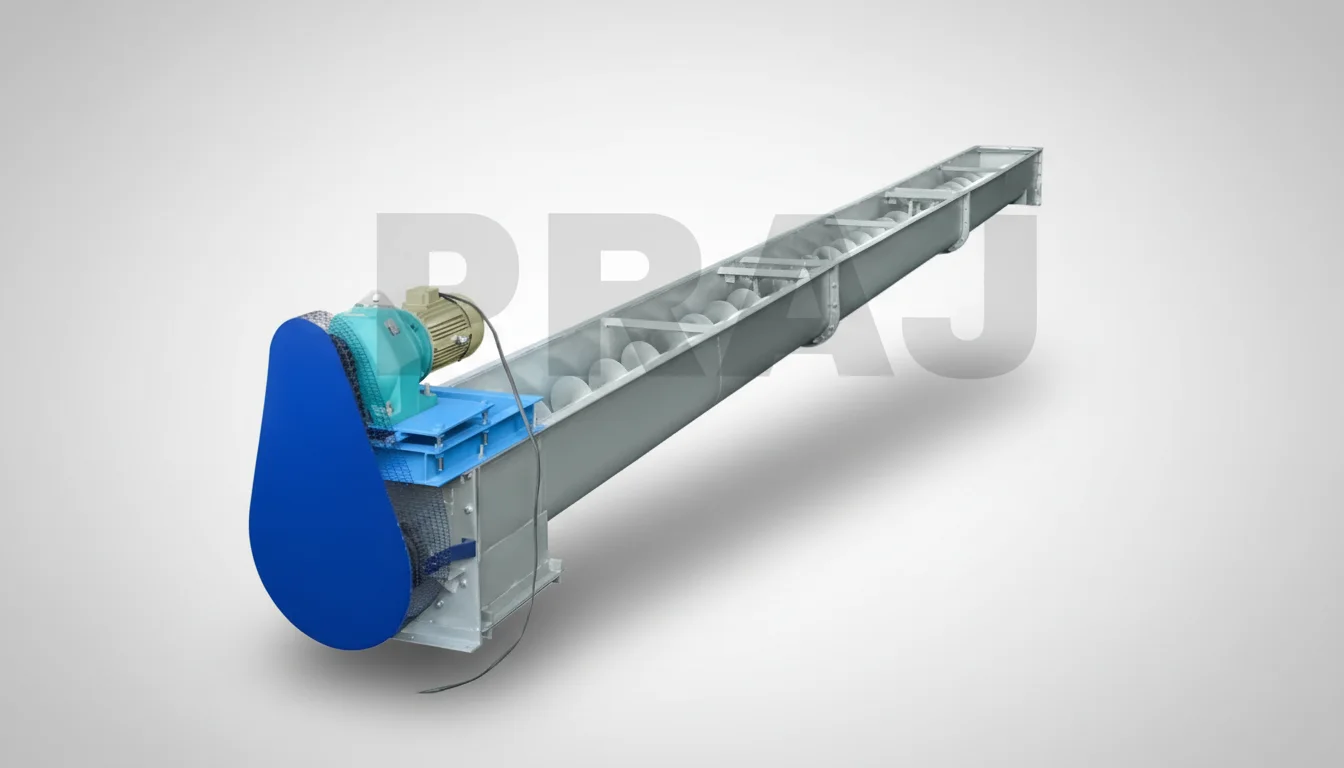

| Screw Conveyor | Hygienic stainless-steel ice transfer | 100 to 400 mm diameter | Moving ice to process or packing |
Not sure what size you need? Send us your daily ice requirement and our Pune engineering team will recommend a complete plant.
